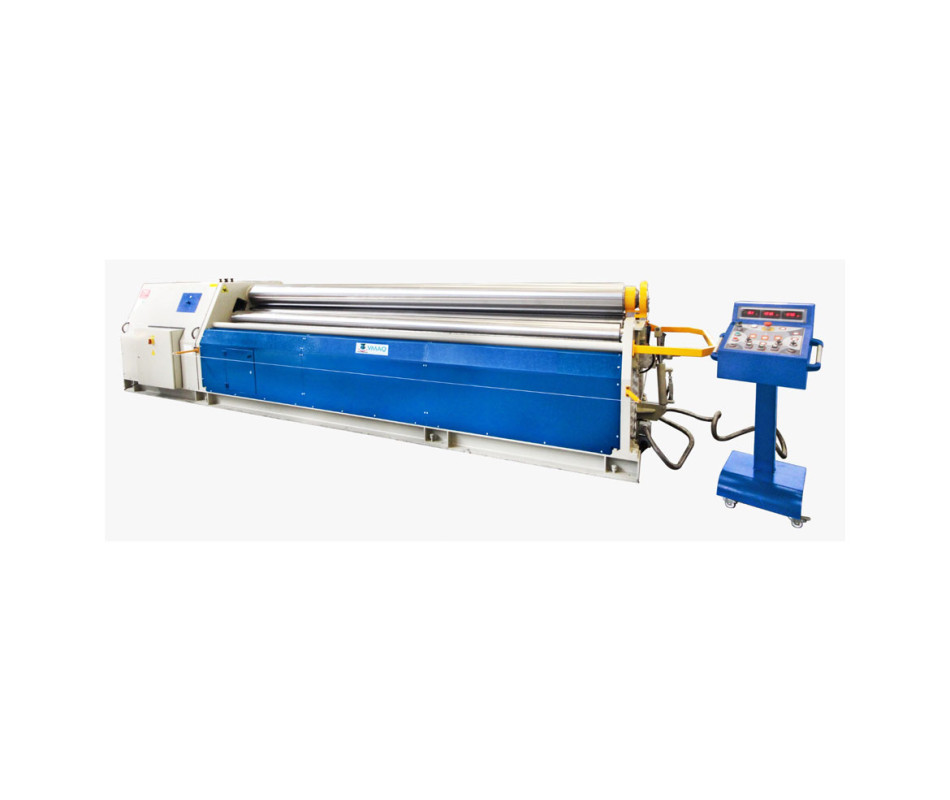

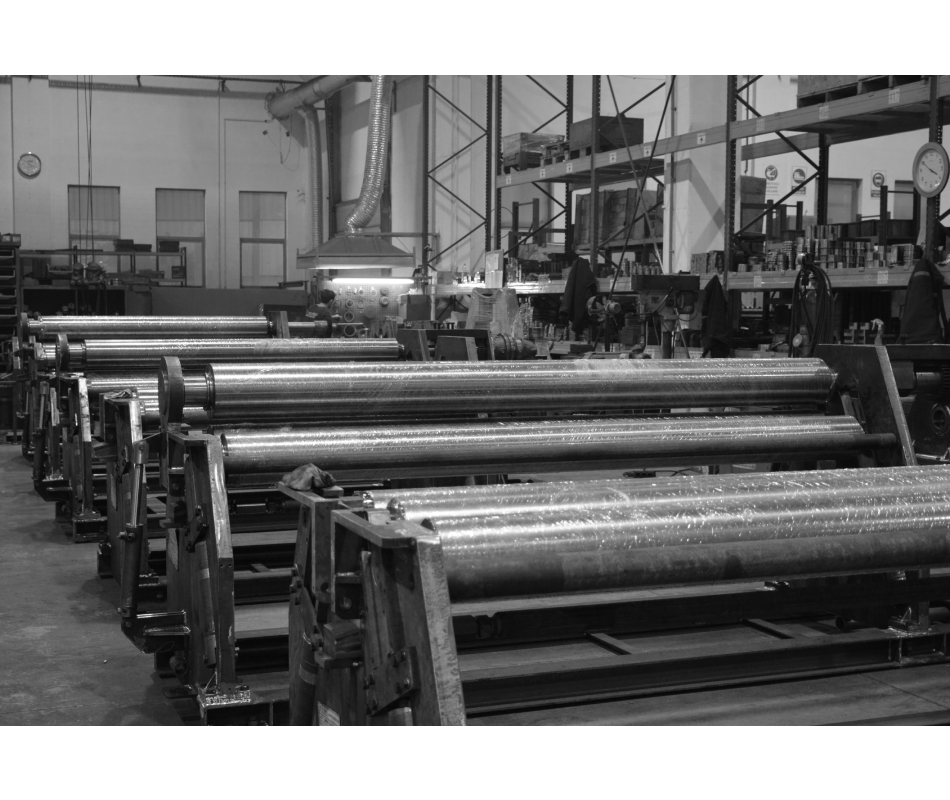

Hydraulic 4 Rollers Vi-HMS 2 Drive Series
Hydraulic 4 Rollers Vi-HMS 2 Drive Series
Standard Features
-
- Top and bottom rollers are driven by Electric motor and planetary gearbox system
- Induction hardened rollers

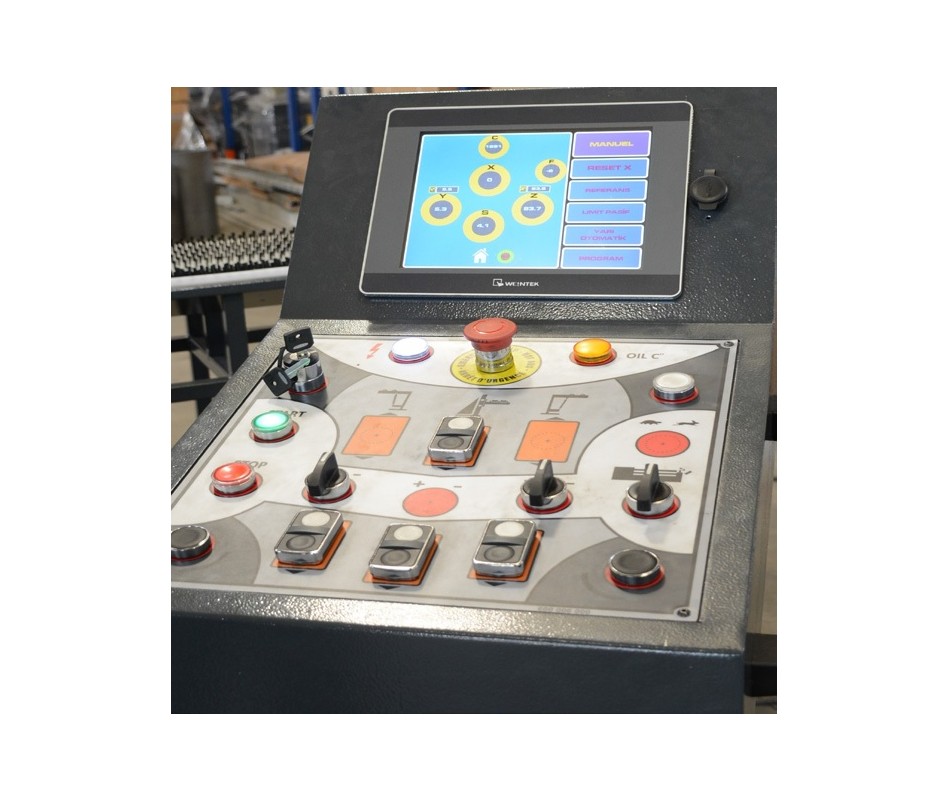

- Mobile Control panel with 3 digital read outs
- Conical bending device
- Single Speed Motor
- Overload Protection
- Hydraulic Opening Head to exclude the finished tube out very easily.
- Hydraulic Balancing System
Optional Features
-
- Hydraulic Side Supports
- Hydraulic top support
- NC Control Unit
- Infinitively Variable Speed System
- Electronic balancing system
- 2 speed working system
|
mm |
mm |
mm |
mm |
mm |
KW |
mm |
kg |
|
|
Plate Length |
Top roller dia. |
No Prebend |
Prebend |
Bottom Roller dia. |
Motor |
LxWxH |
Weight |
|
|
Vi-HMS 1_80 |
1050 |
80 |
2,5 |
2 |
80 |
1,1+0,75 |
2350*950*960 |
1150 |
|
Vi-HMS 1_100 |
1050 |
100 |
3,5 |
2,5 |
100 |
1,1+0,75 |
2350*1150*960 |
1250 |
|
Vi-HMS 1_130 |
1050 |
130 |
6 |
5 |
130 |
2,2+1,1 |
2770*1150*1100 |
2050 |
|
Vi-HMS 1.2_80 |
1270 |
80 |
2 |
1,5 |
80 |
1,1+1,1 |
2570*950*960 |
1250 |
|
Vi-HMS 1.2_100 |
1270 |
100 |
3 |
2 |
100 |
1,1+1,1 |
2570*950*960 |
1350 |
|
Vi-HMS 1.2_130 |
1270 |
130 |
5 |
4 |
130 |
2,2+1,1 |
3020*1150*1110 |
2150 |
|
Vi-HMS 1.2_150 |
1270 |
150 |
7 |
5 |
150 |
2,2+1,1 |
3020*1150*1110 |
2155 |
|
Vi-HMS 1.2_180 |
1270 |
180 |
10 |
7,5 |
180 |
4,0+1,5 |
3070*1350*1290 |
2700 |
|
Vi-HMS 1.2_200 |
1270 |
200 |
12 |
10 |
200 |
4,0+1,5 |
3070*1350*1290 |
3000 |
|
Vi-HMS 1.5_80 |
1550 |
80 |
1,5 |
1 |
80 |
1,1+0,75 |
2850*950*960 |
1350 |
|
Vi-HMS 1.5_100 |
1550 |
100 |
2 |
1,5 |
100 |
1,1+1,1 |
2850*950*960 |
1500 |
|
Vi-HMS 1.5_130 |
1550 |
130 |
4,5 |
3,5 |
130 |
2,2+1,1 |
3300*1150*1110 |
2250 |
|
Vi-HMS 1.5_150 |
1550 |
150 |
6,5 |
4,5 |
150 |
2,2+1,1 |
3300*1150*1100 |
2370 |
|
Vi-HMS 1.5_180 |
1550 |
180 |
9 |
7 |
180 |
4,0+1,5 |
3350*1350*1290 |
2900 |
|
Vi-HMS 1.5_200 |
1550 |
200 |
11 |
9 |
200 |
4,0+1,5 |
3350*1350*1290 |
3250 |
|
Vi-HMS 1.5_220 |
1550 |
220 |
12 |
10 |
220 |
5,5+1,5 |
3350*1500*1370 |
4250 |
|
Vi-HMS 1.5_250 |
1550 |
250 |
15 |
12 |
250 |
7,5+1,5 |
3500*1500*1370 |
4650 |
|
Vi-HMS 2_130 |
2050 |
130 |
4 |
3 |
130 |
2,2+1,1 |
3800*1150*1110 |
2450 |
|
Vi-HMS 2_150 |
2050 |
150 |
6 |
4 |
150 |
2,2+1,1 |
3800*1150*1110 |
2800 |
|
Vi-HMS 2_180 |
2050 |
180 |
8 |
6 |
180 |
4,0+1,5 |
3850*1350*1290 |
3300 |
|
Vi-HMS 2_200 |
2050 |
200 |
10 |
8 |
200 |
4,0+1,5 |
3850*1350*1290 |
3750 |
|
Vi-HMS 2_220 |
2050 |
220 |
11 |
9 |
220 |
5,5+1,5 |
4000*1500*1370 |
4800 |
|
Vi-HMS 2_250 |
2050 |
250 |
12 |
10 |
250 |
7,5+1,5 |
4000*1500*1370 |
5350 |
|
Vi-HMS 2.5_150 |
2550 |
150 |
4 |
3 |
150 |
2,2+1,1 |
4300*1150*1110 |
3230 |
|
Vi-HMS 2.5_180 |
2550 |
180 |
6 |
4 |
180 |
4,0+1,5 |
4350*1350*1290 |
3700 |
|
Vi-HMS 2.5_200 |
2550 |
200 |
8 |
6 |
200 |
4,0+1,5 |
4350*1350*1290 |
4250 |
|
Vi-HMS 2.5_220 |
2550 |
220 |
9 |
7 |
220 |
5,5+1,5 |
4500*1500*1370 |
5400 |
|
Vi-HMS 2.5_250 |
2550 |
250 |
10 |
8 |
250 |
7,5+1,5 |
4500*1500*1370 |
6100 |
|
Vi-HMS 3_180 |
3100 |
180 |
4 |
3 |
180 |
4,0+1,5 |
4850*1350*1290 |
4100 |
|
Vi-HMS 3_200 |
3100 |
200 |
6 |
4 |
200 |
4,0+1,5 |
4850*1350*1290 |
4750 |
|
Vi-HMS 3_220 |
3100 |
220 |
8 |
6 |
220 |
5,5+1,5 |
5000*1500*1370 |
6000 |
|
Vi-HMS 3_250 |
3100 |
250 |
9 |
7 |
250 |
7,5+1,5 |
5000*1500*1370 |
6800 |
|
*** Given capacities are for mild steel 260Mpa |
||||||||
|
***Bending diameters are 5 times of the top roller |
||||||||
