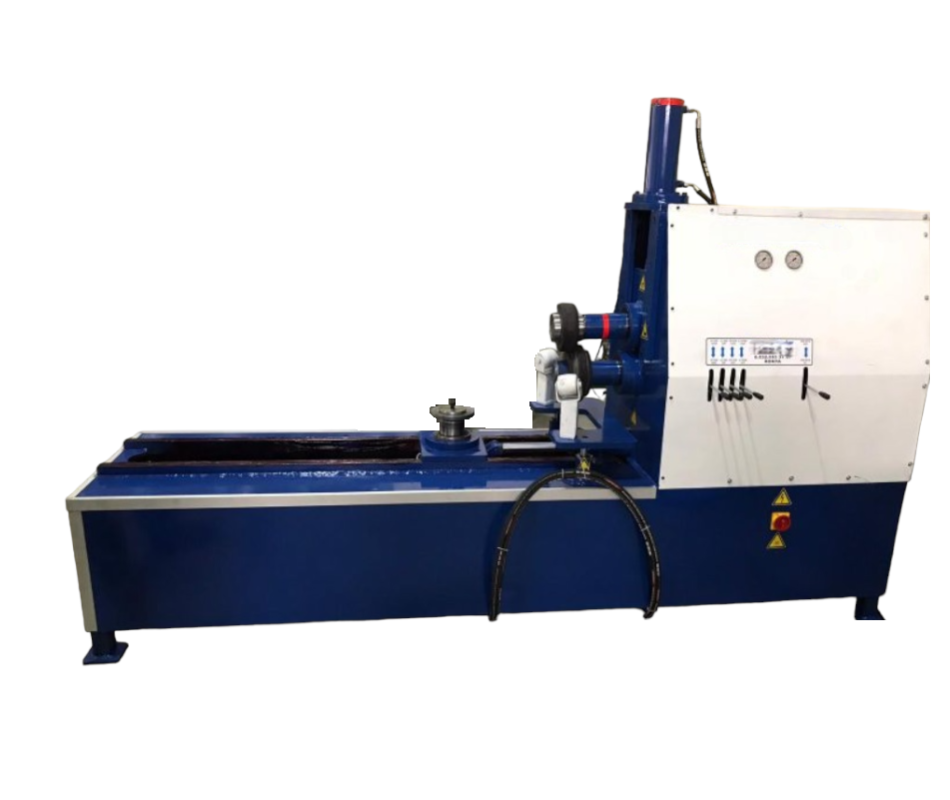

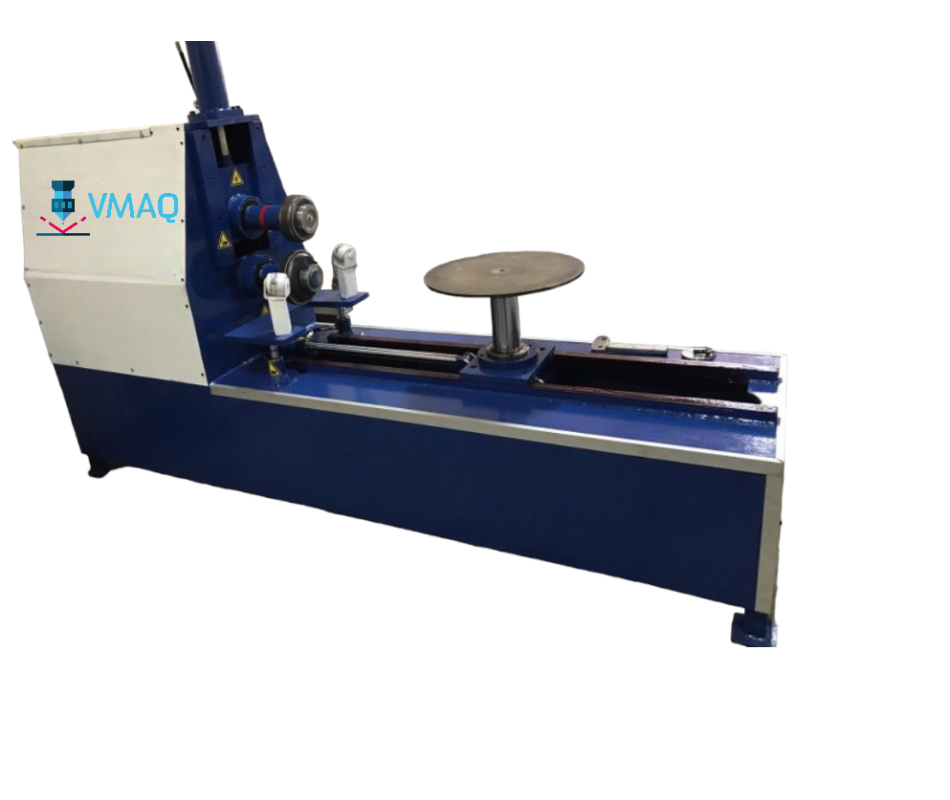

Vi-FL Models

Standard Features:

• 1 set of Flanging Roller for double side R20 and R40 included.
• Fixed speed carriage system.
• Top and bottom shafts are driven by BMH 400 Hydromotor.
• Diameter adjustable and Hydraulic Lateral Side Supporters.
• United Control Panel with the Frame
• Hydraulic movements with control panel.

Description of the machine:

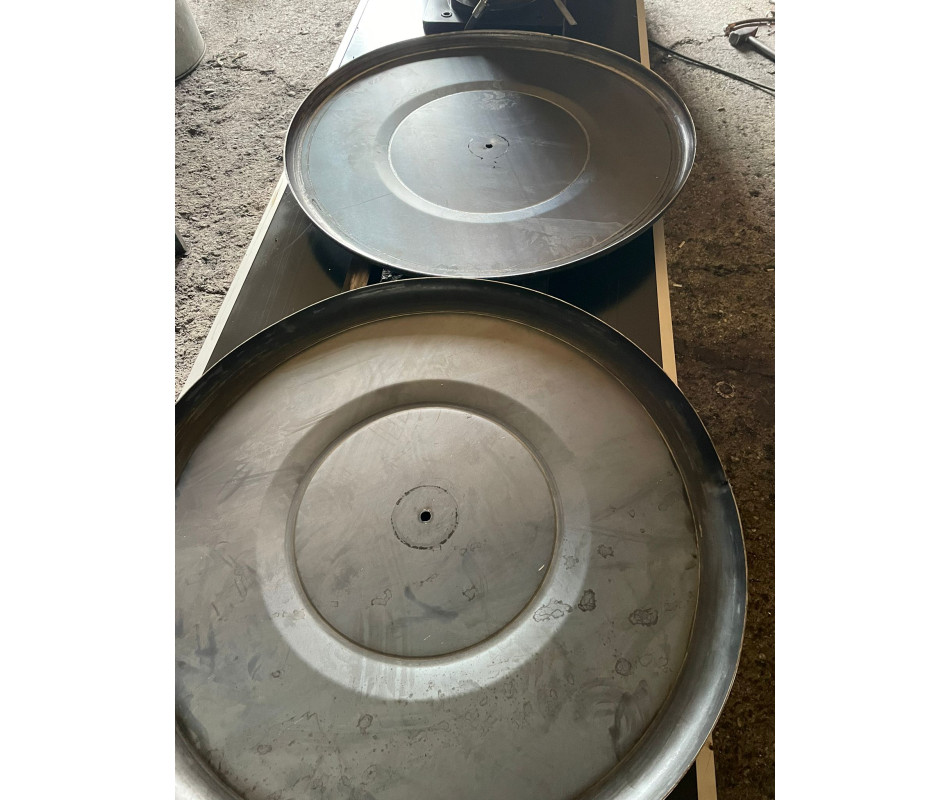

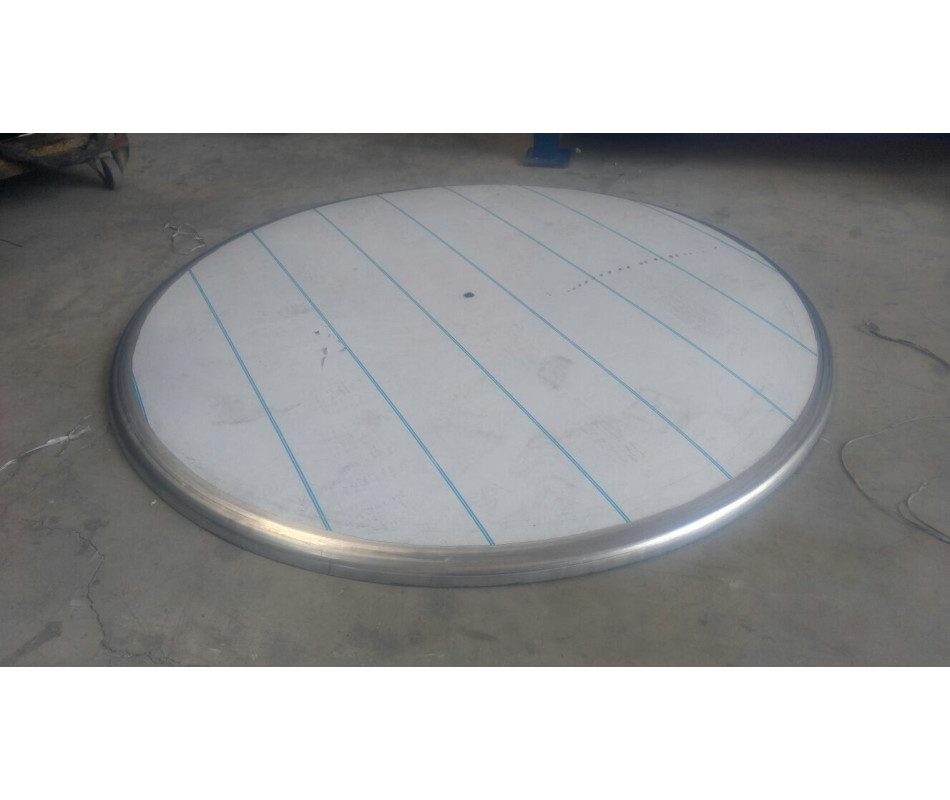

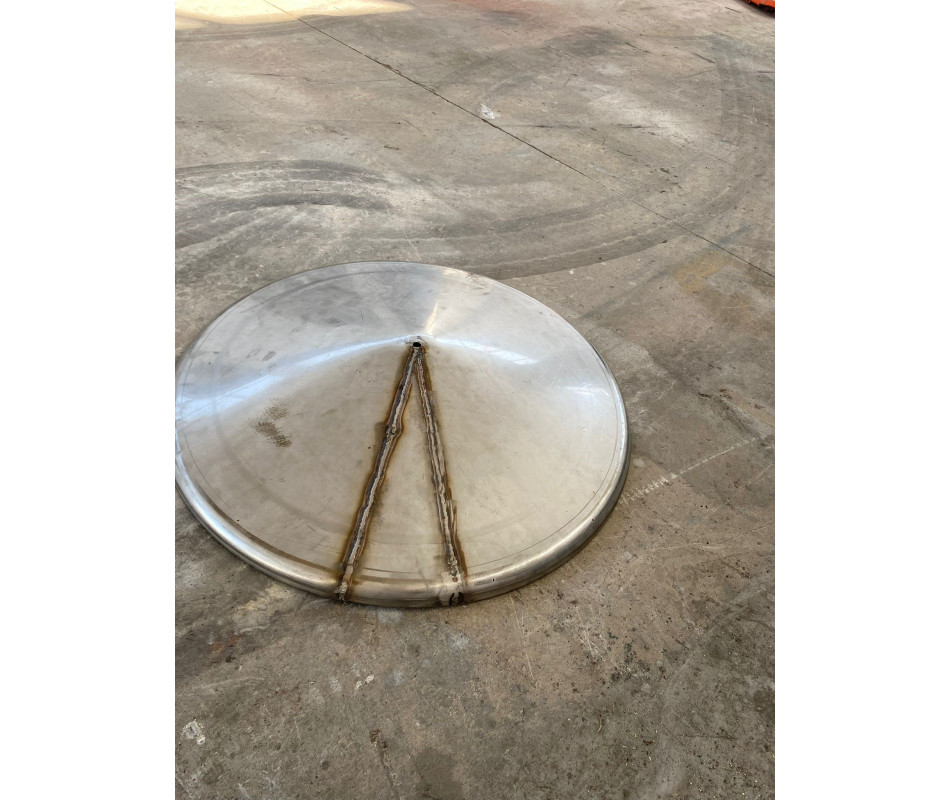

• This machine is available to flange up to 6 mm stainless Steel.
• Variable Flanging system with double driven hydraulic system.
• Hydraulic Vertical movement of the top shaft in order to flange the part.
• Flanging process done by control unit fixed over the frame.
• Holder of the part and carriage system movement is controlled with joysticks over the frame.
• Holder can move up and down (hydraulic)
• This machine can flange up to R50mm
• Lateral side supporters in order to ease the flanging process.
• Welded Steel frame.
• Rollers are induction hardened rollers.
• Metric 16 fixing hole on the holder piston. (this can be optional due to customer request)
• 9cc-16cc tandem pump system with single motor.
