SB SERIES Hydraulic Swing Beam Guillotine Shears
SB SERIES Hydraulic Swing Beam Guillotine Shears
Standard Features

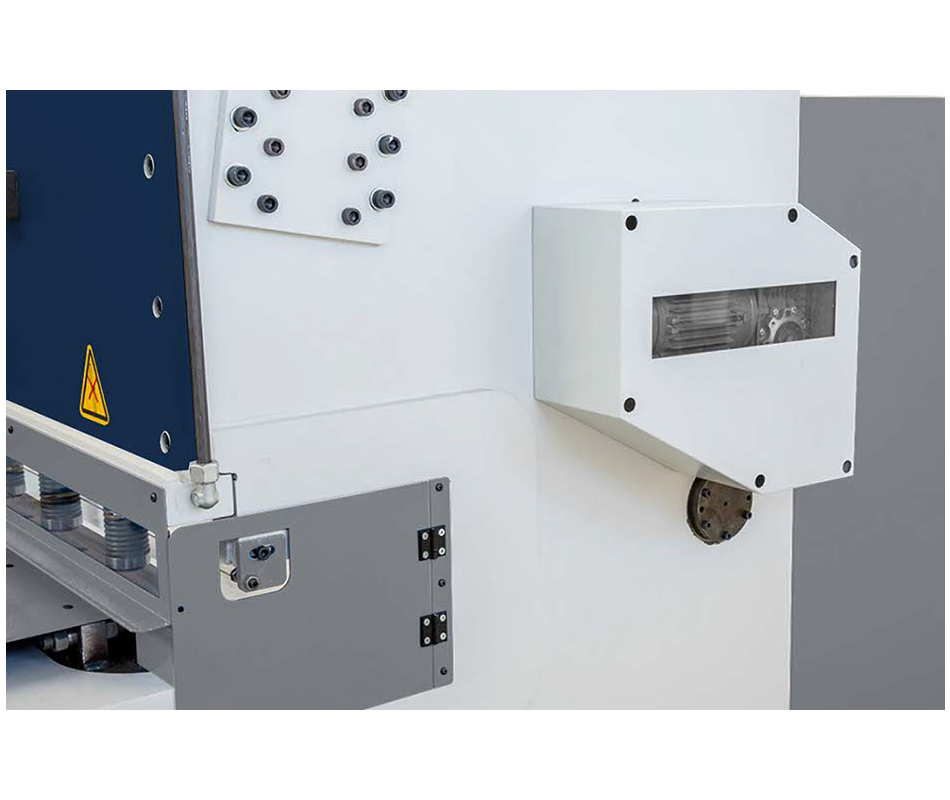

- Motorised Blade gap adjustment with CNC Control Unit Cybelec CYB Touch 8
- CE Norms and security
- CNC Touch Screen by Cybelec User Friendly mode

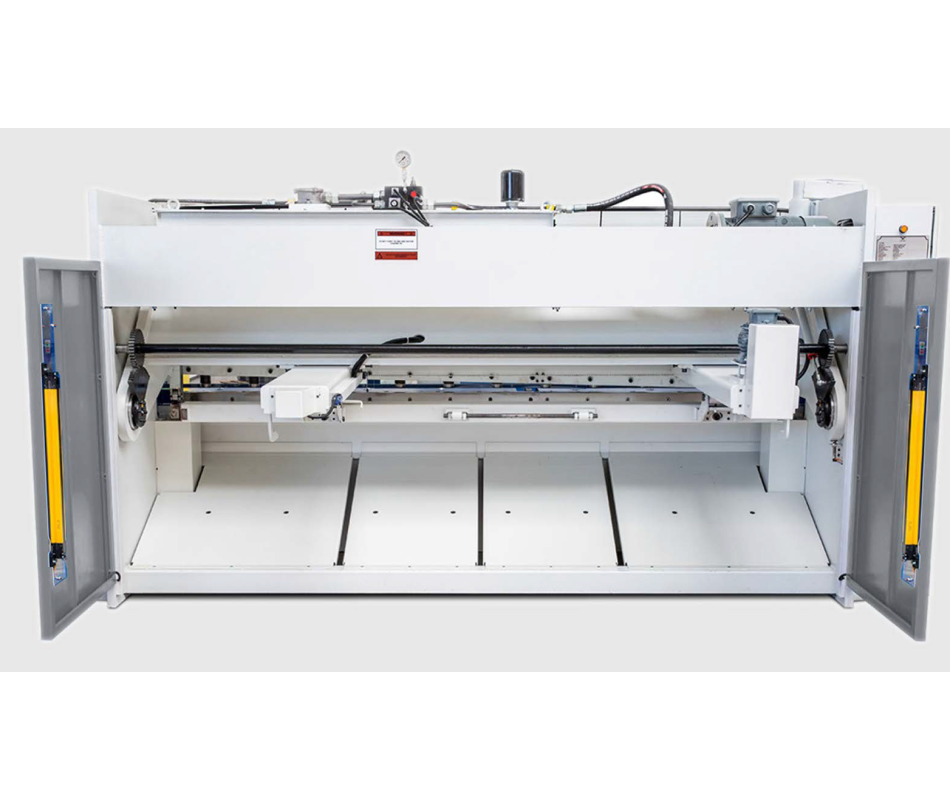

- Back gauge with automatic swing up and ball screw 1000mm
- Flexi glass flip up finger guards 1 meter
- 1500mm squaring arm with T slot and scale on it
- 1000mm suport arms 2 pcs T slots on it
- Stroke Counter
- Rubber pad
- Top 2 side and 4 bottom side blades
- Front support arms and table with iron balls
- Shadow line and illumination
Optional Features
- Finger protection aimed light curtain
- Thin sheet support pneumatic
- Additional support arm 2 mt length with vertical support each
- Additional support arm 3 mt 1 pcs with vertical support
- Extension squaring arm 2 mt length with vertical support
- Extension squaring arm 3 mt length with verical support
- Adjustable angle stop 0-180 degree
- Laser cutting line
- Speare Blades
- Oil Coolant
- Oil Heater
|
SB SERIES GUILLOTINE SHEARS |
||||||||||||||||||
|
Type |
Cutting angle |
Cutting Length |
Capacity |
Capacity |
Length |
Width |
Height |
Total Width |
Throat Depth |
Table Height |
Hold down pistons |
Motor |
Back gauge motor |
Back gauge range |
Back Gauge Speed |
Stroke/min |
Oil Tank |
Weight |
|
|
|
A |
420N/mm2 |
700N/mm2 |
L |
W |
H |
W1 |
D |
C |
|
|
|
|
|
|
|
|
|
|
( ° ) |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
pcs |
kw |
kw |
mm |
mm/sec |
1/min |
lt |
kg |
|
SB 2106 |
1,5° |
2100 |
6 |
4 |
3100 |
1800 |
1650 |
3430 |
50 |
760 |
10 |
11 |
0,75 |
1000 |
150 |
14 |
200 |
5300 |
|
SB 2506 |
1,5° |
2600 |
6 |
4 |
3600 |
1850 |
1800 |
3430 |
50 |
760 |
13 |
11 |
0,75 |
1000 |
200 |
14 |
200 |
5700 |
|
SB 3106 |
1,5° |
3100 |
6 |
4 |
4110 |
2195 |
1770 |
3480 |
50 |
790 |
15 |
11 |
0,75 |
1000 |
200 |
14 |
200 |
7000 |
|
SB 2110 |
1,8° |
2100 |
10 |
6 |
3200 |
2200 |
2030 |
3450 |
50 |
805 |
10 |
22 |
0,75 |
1000 |
200 |
10 |
200 |
7800 |
|
SB 2510 |
1,8° |
2600 |
10 |
6 |
3680 |
2200 |
2060 |
3450 |
50 |
805 |
10 |
22 |
0,75 |
1000 |
200 |
10 |
250 |
8400 |
|
SB 3110 |
1,8° |
3100 |
10 |
6 |
3935 |
2225 |
2090 |
3560 |
50 |
805 |
15 |
22 |
0,75 |
1000 |
200 |
10 |
300 |
9000 |
|
SB 3113 |
2,3° |
3100 |
13 |
8 |
3950 |
2240 |
2100 |
3640 |
50 |
805 |
15 |
30 |
0,75 |
1000 |
200 |
8 |
400 |
11200 |
|
SB 3116 |
2,5° |
3100 |
16 |
10 |
4035 |
2415 |
2365 |
3750 |
50 |
880 |
15 |
37 |
0,75 |
1000 |
200 |
8 |
400 |
15000 |
|
SB 3120 |
2,7° |
3100 |
20 |
13 |
4050 |
2490 |
2375 |
3780 |
50 |
880 |
15 |
45 |
0,75 |
1000 |
200 |
8 |
500 |
21000 |
|
SB 4106 |
1,5° |
4100 |
6 |
4 |
5120 |
2195 |
1770 |
3492 |
50 |
790 |
19 |
11 |
0,75 |
1000 |
200 |
12 |
200 |
9000 |
|
SB 4110 |
1,8° |
4100 |
10 |
6 |
4935 |
2225 |
2220 |
3575 |
50 |
805 |
19 |
22 |
0,75 |
1000 |
200 |
8 |
300 |
11500 |
|
SB 4113 |
2,3° |
4100 |
13 |
8 |
4950 |
2240 |
2235 |
3680 |
50 |
805 |
19 |
30 |
0,75 |
1000 |
200 |
8 |
400 |
14500 |
